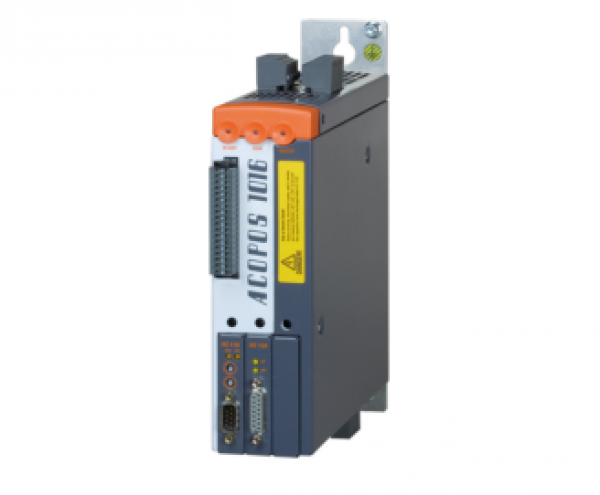

Biến tần Acopos B&R 8V1016.50-2

Mã sản phẩm:

Giá bán: Liên hệ

Mô tả sản phẩm:

B&R ID code	0x18D7
Slots for plug-in modules	3
Certifications
CE	Yes
Functional safety	Yes
UL	cULus E225616 Power conversion equipment
EAC	Yes
KC	Yes

Permissible network configurations	TT, TN
Mains input voltage	3x 110 VAC to 230 VAC ±10% or 1x 110 VAC to 230 VAC ±10%
Frequency	50 / 60 Hz ±4%
Installed load	Max. 2.1 kVA
Inrush current	5 A (at 230 VAC)
Switch-on interval	>10 s
Integrated line filter per EN 61800-3, category C3	Yes
Power dissipation at device nominal power without braking resistor	110 W

DC bus capacitance	2040 µF

Input voltage	24 VDC +25% / -20%
Input capacitance	5600 µF
Current consumption	Max. 1.47 A + Current for motor holding brake

Quantity	1
Continuous current	3.6 A_eff
Reduction of continuous current depending on ambient temperature
Mains input voltage: 110 VAC
Switching frequency 5 kHz	No reduction
Switching frequency 10 kHz	No reduction
Switching frequency 20 kHz	No reduction
Mains input voltage: 230 VAC
Switching frequency 5 kHz	No reduction
Switching frequency 10 kHz	No reduction
Switching frequency 20 kHz	No reduction
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level	0.36 A_eff per 1000 m
Peak current	12 A_eff
Nominal switching frequency	10 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Max. motor line length	15 m
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeves	0.25 to 4 mm²
Approbation data
UL/C-UL-US	30 to 10 AWG
CSA	28 to 10 AWG

Response threshold for open-circuit monitoring	Approx. 245 mA
Max. output current	1.3 A
Max. number of switching cycles	Unlimited since implemented electronically

Peak power output	1.9 kW
Continuous power	130 W

Quantity	3
Circuit	Sink
Electrical isolation
Input - ACOPOS	Yes
Input - Input	No
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 4 mA
Switching delay	Max. 2.0 ms
Modulation compared to ground potential	Max. ±38 V

Quantity	1
Circuit	Sink
Electrical isolation
Input - ACOPOS	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Input current at nominal voltage	Approx. 30 mA
Switching threshold
Low	<5 V
High	>15 V
Switching delay
Enable 0 → 1, ready for PWM	Max. 100 µs
Enable 1 → 0, PWM off	Max. 2.0 ms
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections	Not permitted

Quantity	2
Circuit	Sink
Electrical isolation
Input - ACOPOS	Yes
Input - Input	No
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Switching delay
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V

Energy efficiency (IE classification)
Efficiency data	IE2 (10,25) 5.3% IE2 (50,25) 5.9% IE2 (10,50) 5.4% IE2 (50,50) 6.7% IE2 (90,50) 9% IE2 (10,100) 6.3% IE2 (50,100) 9.7% IE2 (90,100) 16.5%
Nominal losses in standby mode	12.5 W

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	2000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	II
Degree of protection per EN 60529	IP20
