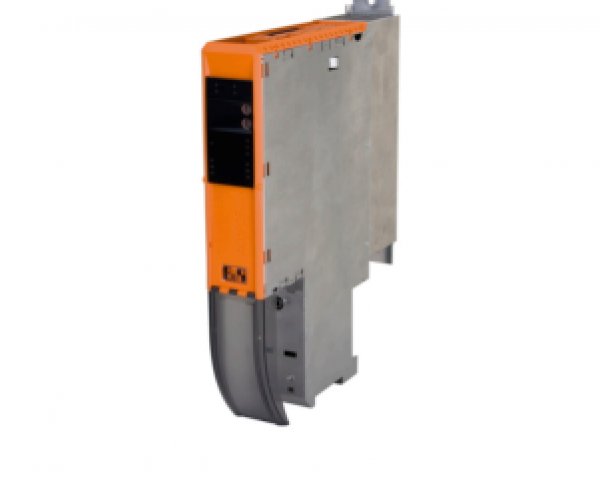

Biến tần Acopos multi B&R 8BVI0110HWS0.000-1

Mã sản phẩm:

Giá bán: Liên hệ

Mô tả sản phẩm:

SKU: 8BVI0110HWS0.000-1

Hãng sản xuất: B&R

Xuất xứ: Austria

Chất lượng: Mới 100%

Bảo hành: Chính hãng

Chứng từ: CO, DoC

Thông số:

CÔNG TY CỔ PHẦN CÔNG NGHỆ VÀ TỰ ĐỘNG ĐỨC PHONG

- Địa chỉ: 161 Ngô Quyền Phường Hiệp Phú Thành phố Thủ Đức, TP.HCM

- Hotline: +84 28 3737 0165

B&R ID code	0x270E
Cooling and mounting type	Wall mounting
Slots for plug-in modules	2
Certifications
CE	Yes
Functional safety	Yes
UL	cULus E225616 Power conversion equipment
EAC	Yes
KC	Yes

Voltage
Nominal	750 VDC
Continuous power consumption	11.2 kW
Power dissipation depending on switching frequency
Switching frequency 5 kHz	[0.16 * I_M² + 5.6 * I_M + 55] W
Switching frequency 10 kHz	[0.49 * I_M² + 4.7 * I_M + 95] W
Switching frequency 20 kHz	[0.87 * I_M² + 10 * I_M + 200] W
DC bus capacitance	330 µF
Variant	ACOPOSmulti backplane

Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	12 W + P_SLOT1 + P_SLOT2 + P_{24 V Out} + P_HoldingBrake
Variant	ACOPOSmulti backplane

Quantity	2
Output voltage
DC bus voltage (U_DC): 260 to 315 VDC	25 VDC * (U_DC/315)
DC bus voltage (U_DC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Quantity	1
Continuous power per motor connection	11 kW
Continuous current per motor connection	15.1 A_eff
Reduction of continuous current depending on switching frequency
Switching frequency 5 kHz	No reduction
Switching frequency 10 kHz	0.26 A/K (starting at 33°C)
Switching frequency 20 kHz	0.15 A/K (starting at -28°C)
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level	1.51 A_eff per 1000 m
Peak current	37.7 A_eff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
Variant
U, V, W, PE	Connector
Shield connection	Yes
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeves	0.25 to 6 mm²
Approbation data
UL/C-UL-US	30 to 10 AWG
CSA	28 to 10 AWG
Terminal cable cross section dimension of shield connection	12 to 22 mm
Max. motor line length depending on switching frequency
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	25 m
Switching frequency 20 kHz	10 m

Quantity	1
Output voltage	24 VDC +5.8% / -0%
Continuous current	2.1 A
Max. internal resistance	0.3 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Protective measures
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC +0% / -4%

Quantity	2
Circuit	Sink
Electrical isolation
Input - Inverter module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Input current at nominal voltage	Approx. 30 mA
Switching threshold
Low	<5 V
High	>15 V
Switching delay at nominal input voltage
Enable 1 → 0, PWM off	Max. 20.5 ms
Enable 0 → 1, ready for PWM	Max. 100 µs
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections	Permitted Max. test pulse length: 500 µs

Quantity	2
Circuit	Sink
Electrical isolation
Input - Inverter module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Switching delay
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V

Discharge capacitance	0.14 µF

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
