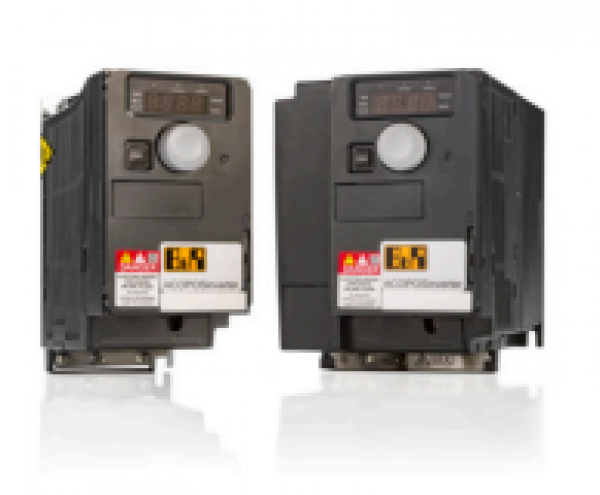

Biến tần B&R 8I66T400150.00-000

Mã sản phẩm:

Giá bán: Liên hệ

Mô tả sản phẩm:

Base device for ACOPOSinverter P66 and P64new, 3 x 380 to 500 V, 1.5 kW, integrated EMC filter and brake chopper, shield plate included in delivery

General information

Certifications
CE	Yes
UL	UL E225616 Power conversion equipment
CSA	CSA E272421 Industrial control equipment
KC	Yes

Motor power

Specified on nameplate	1.5 kW (2 HP)

Mains connection

Mains input voltage	3x 380 VAC -15% to 500 VAC +10%
Frequency	50 to 60 Hz ±5%
Apparent power (at 500 VAC)	3.8 kVA
Max. assumed short-circuit current (Isc) (short-circuit current at connection point)	5 kA
Inrush current	Max. 10 A
Mains current
At 380 VAC	5.8 A
At 500 VAC	4.4 A
Power dissipation at nominal load and nominal clock frequency	61 W
Integrated EMC filter	Yes

Line-conducted and radiated emissions

With integrated filter
Motor cable length per IEC/EN 61800-3 Cat. C2 environment 1 (public power network)	10 m
Motor cable length per IEC/EN 61800-3 Cat. C3 environment 2 (industrial power system)	10 m
With add-on filter	8I0FT015.200-1
With add-on filter
Motor cable length per IEC/EN 61800-3 Cat. C1 environment 1 (public power network)	20 m
Motor cable length per IEC/EN 61800-3 Cat. C2 environment 1 (public power network)	50 m
Motor cable length per IEC/EN 61800-3 Cat. C3 environment 2 (industrial power system)	150 m

Motor connection

Nominal output current	4.1 A
Derating of continuous output current depending on ambient temperature
At nominal clock frequency (4 kHz)	No derating (up to 50°C)
Other clock frequencies	The derating curves are included in the installation instructions, which can be downloaded from the website (www.br-automation.com).
Derating of continuous output current depending on installation elevation
Starting at 1000 m above sea level	1%, per 100 m
Max. transient current for 60 s	6.2 A
Output frequency range	0.1 to 599 Hz
Nominal clock frequency	4 kHz
Clock frequency
Min.	2 kHz
Max.	16 kHz
Braking torque
With braking resistor	Up to 170% of the rated motor torque
Max. motor cable length
Shielded cable	50 m
Non-shielded cable	100 m
Motor control profiles
Induction motor	Sensorless vector control: 1. Voltage controlled with constant torque → standard mode 2. Voltage controlled with variable torque → energy saving mode e.g. for fans and pumps Sensorless slip control: 1. With V/f characteristic curve for constant torque → standard mode 2. With V/f characteristic curve for constant torque (up to 6 f-ranges) → Custom mode for special applications 3. With V/f characteristic curve for quadratically increasing torque → Energy-saving mode, e.g. for fans and pumps
Synchronous motor	Sensorless vector control: 1. Voltage controlled with constant torque → standard mode
Main protective functions of inverter	Thermal protection against power stage overheating Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply

Brake chopper

Integrated dynamic brake transistors	Yes
Min. resistance value (external)	54 Ω

24 VDC power supply

Input voltage	24 VDC (-15%/+20%)
Current	Max. 1.1 A

Available internal power supplies

Output voltage 24 VDC	24 VDC (-15%/+20%)
Output voltage 24 VDC
Max. output current at 24 VDC	100 mA
Output voltage 10 VDC	10 VDC (-0%/+10%)
Output voltage 10 VDC
Max. output current at 10 VDC	10 mA

Interfaces

POWERLINK
Type	Type 3

Digital inputs

Quantity	6
Nominal voltage	24 VDC (max. 30 VDC)
Input circuit	Source or sink
Switching threshold	Sink: >19 V (position 0), <13 V (position 1) Source: <5 V (position 0), >11 V (position 1)
Electrical isolation
Input - ACOPOSinverter	Yes
Input - Input	No
Sampling time	8 ms ±0.7 ms
Digital input 5
Max. input frequency	20 kHz

Safe input - STO (Safe Torque Off)

Quantity	1
Nominal voltage	24 VDC (max. 30 VDC)
Input impedance	1.5 kΩ
Input impedance
Current consumption	16 mA
Electrical isolation
Input - ACOPOSinverter	Yes
Input - Input	No

Analog inputs

Quantity	3
Electrical isolation
Input - Input	No
Input - ACOPOSinverter	Yes
Nonlinearity	±0.2%, max. ±0.5%
Basic accuracy	At 25°C: ±0.5% At -10 to 60°C: ±0.7%
Input
Voltage	AI1: 0 to 10 VDC AI2: 0 ±10 VDC, max. 30 VDC
Current	0 to 20 mA (or 4 to 20 mA)
Resolution	10-bit
Sampling time	2 ms
Input impedance
Voltage	30 kΩ
Current	250 Ω

Digital outputs

Quantity	1
Nominal voltage	24 VDC -15%/+20%
Max. voltage	30 VDC
Output circuit	Source or sink
Sampling time	2 ms
Max. current	100 mA

Relay outputs

Quantity	2
Nominal voltage	30 VDC / 250 VAC
Switching current range	Min. switching current: 5 mA at 24 VDC Max. switching current: R1 at cos φ = 1: 3 A at 250 VAC / 4 A at 30 VDC R2 at cos φ = 1: 5 A R1 and R2 at cos φ = 0.4: 2 A
Variant
Relay 1	1 changeover contact
Relay 2	1 normally open contact
Electrical isolation
Output - ACOPOSinverter	Yes
Output - Output	No
Response time (max.)	2 ms

Analog outputs

Quantity	1
Output	0 to 10 V or 0 to 20 mA
Nonlinearity	±0.3%
Basic accuracy	At 25°C: ±1% At -10 to 60°C: ±2%
Electrical isolation
Output - ACOPOSinverter	Yes
Output - Output	No
Max. load impedance
Voltage	470 Ω
Current	800 Ω
Update time	2 ms
Resolution	10-bit

Electrical properties

Energy efficiency (IE classification)
Efficiency data	IE (10, 25): 1% (3x 380 VAC), 0.9% (3x 500 VAC) IE (50, 25): 0.9% (3x 380 VAC), 0.8% (3x 500 VAC) IE (10, 50): 1.2% (3x 380 VAC), 1% (3x 500 VAC) IE (50, 50): 1.1% (3x 380 VAC), 1% (3x 500 VAC) IE (90, 50): 1.2% (3x 380 VAC), 1% (3x 500 VAC) IE (10, 100): 1.7% (3x 380 VAC), 1.5% (3x 500 VAC) IE (50, 100): 1.7% (3x 380 VAC), 1.4% (3x 500 VAC) IE (90, 100): 2% (3x 380 VAC), 1.5% (3x 500 VAC)
Nominal losses in standby mode	7 W (3x 380 VAC), 9 W (3x 500 VAC)

Operating conditions

Degree of protection per EN 61800-5-1	IP20
Relative humidity per IEC 60068-2-3	5 to 95%, non-condensing No dripping water
Maximum installation elevation	≤1000 m without derating 1000 to 3000 m with Derating
Max. pollution degree per IEC/EN 61800-5-1	2 (non-conductive pollution)
Ambient conditions per IEC 60721-3-3	Class 3C3 and 3S2
Operating position	Vertical mounting orientation ±10°

Ambient conditions

Temperature
Operation	-10 to 50°C without derating 50 to 60°C with derating
Storage	-25 to 70°C
Max. vibration resistance	1 g_n 13 to 200 Hz EN/IEC 60068-2-6 1.5 mm peak to peak 2 to 13 Hz EN/IEC 60068-2-6
