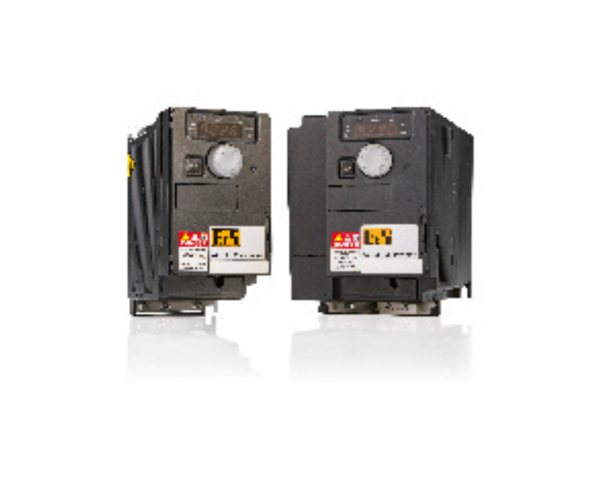

Biến tần B&R 8I66T400400.00-000

Mã sản phẩm:

Giá bán: Liên hệ

Mô tả sản phẩm:

SKU: 8I66T400400.00-000

Hãng sản xuất: B&R

Xuất xứ: Austria

Chất lượng: Mới 100%

Bảo hành: Chính hãng

Chứng từ: CO, DoC

Thiết bị cơ bản cho ACOPOSinverter P66 và P64 mới, 3 x 380 đến 500 V, 4 kW, bộ lọc EMC tích hợp và bộ phanh, tấm chắn đi kèm trong giao hàng.

Liên hệ ngay với DPTA Corporation – nhà phân phối chính thức của B&R tại Việt Nam, để nhận thêm thông tin chi tiết và báo giá tốt nhất!

- Địa chỉ: 161 Ngô Quyền Phường Hiệp Phú Thành phố Thủ Đức, TP.HCM

- Hotline: +84 28 3737 0165

B&R ID code	0xB41D
Status indicators	Safety status, interface status
Cooling and mounting type	Cold plate mounting
Certifications
CE	Yes
Functional safety	Yes
UL	cULus E225616 Power conversion equipment

Voltage
Nominal	750 VDC
Variant
DC+, DC-, PE	Cage clamp terminal block
Shield connection	Yes (via cable gland)
Terminal connection cross sections
Flexible and fine-stranded wires
With wire end sleeves	0.25 to 10 mm²
Approbation data
UL/C-UL-US	24 to 8
CSA	24 to 8
Terminal cross sections (cable diameter)	14 to 21 mm (M32 cable grommet)
Max. cable length	30 m

Quantity	2
Input voltage	24 VDC -25% / +20%
Max. power consumption	In preparation
Variant
24 VDC, COM, PE	Cage clamp terminal block
Shield connection	No
Terminal connection cross sections
Flexible and fine-stranded wires
With wire end sleeves	0.25 to 10 mm²
Approbation data
UL/C-UL-US	24 to 8
CSA	24 to 8
Terminal cross sections (cable diameter)	14 to 21 mm (M32 cable grommet)
Max. cable length	30 m

Quantity	4 (each with DC bus, 24 VDC, 2x enable, POWERLINK)
DC+ and DC- fuse protection
Type	Blow-out fuse conforming to UL/CSA, ø 10 x 38 mm
Tripping characteristic	Fast-acting
Rated current of fuse depending on ambient temperature
40°C	In preparation
60°C	20 A
24 VDC fuse protection
Type	Blade fuses conforming to UL/CSA
Tripping characteristic	Fast-acting
Rated current of fuse depending on ambient temperature
40°C	In preparation
60°C	15 A
Continuous power depending on rated current of fuse
DC+ and DC-
20 A	10.1 kW
24 VDC
15 A	240 W
Continuous current depending on rated current of fuse
DC+ and DC-
20 A	13.5 A_eff
24 VDC
15 A	10.1 A
Continuous current of enable outputs	Max. 500 mA
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	10% per 1,000 m
Power dissipation with continuous power
DC+ and DC-
20 A	In preparation
24 VDC
15 A	In preparation
Protective measures
Overload protection
DC+ and DC-	No (overload status can be retrieved via fieldbus)
24 VDC	No (overload status can be retrieved via fieldbus)
Short circuit and ground fault protection
DC+ and DC-	Yes
24 VDC	Yes
Max. cable length	30 m
Variant	15-pin male TYCO connector

Quantity	2
Output voltage	Depends on the 24 VDC supply
Continuous current	Max. 8 A (max. 4 A per pin)
Fuse protection per pin
Type	Blade fuses conforming to UL/CSA
Tripping characteristic	Fast-acting
Rated current of fuse depending on ambient temperature
40°C	5 A
60°C	7.5 A
Protective measures
Overload-proof	No (overload status can be retrieved via fieldbus)
Short-circuit proof	Yes
Variant
24 VDC, COM	Female M8 connector

Type	POWERLINK (V1/V2) 100BASE-T (ANSI/IEE 802.3)
Variant	1x internal 4-port hub, 1x internal 5-port hub; 4x 19-pin hybrid connector, 4x M12 female connector
Cable length	Max. 100 m between two stations (segment length)
Transfer rate	100 Mbit/s

Quantity	2
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Permissible input current	Max. 2 A
Variant	Cage clamp terminal block
Terminal connection cross sections
Flexible and fine-stranded wires
With plastic wire end sleeves	0.25 to 1.5 mm²
Approbation data
UL/C-UL-US	26 to 12
CSA	-
Terminal cross sections (cable diameter)	5 to 9 mm (M16 cable grommet)
Max. cable length	30 m

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	Yes
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP65
