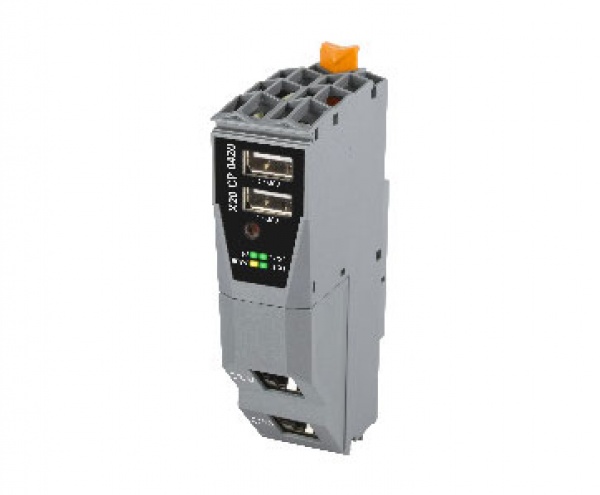

Bộ lập trình B&R X20CP0420

Mã sản phẩm: X20CP0420

Giá bán: Liên hệ

Mô tả sản phẩm:

PLC dòng X20 Compact-S, chip ARM Cortex-A9-166 (compatible), DDR3 RAM 128MB, FRAM 8kb , ổ cứng flash 256 MB 2 cổng USB, 1 cổng RS232, 1 cổng Ethernet 10/100BASE-T.
Xuất xứ: B&R - Áo
Chất lượng: Mới 100%
Bảo hành: 1 năm
Chứng từ: CO,CQ

Bộ xử lý ARM Cortex-A9 166 Mhz (tương đương) tích hợp bộ xử lý I/O.
Tích hợp cổng Ethernet.
2 x USB
128 MB DDR3 SDRAM
Ổ đĩa flash tích hợp 256 MB
Không quạt, pin
Cực kỳ nhỏ gọn

Bộ điều khiển trong dòng X20 Compact-S đều mạnh mẽ và nhỏ gọn. Thiết kế không quạt, không dùng pin của những bộ điều khiển này có nghĩa là chúng hoàn toàn không cần bảo trì.

Với Ethernet, USB và RS232, bộ điều khiển cung cấp nhiều tùy chọn giao tiếp. Có sẵn giao diện RS485 hoặc CAN tùy chọn.

Short description

Interfaces	1x Ethernet (2-port switch), 2x USB, 1x X2X Link
System module	Controller

General information

B&R ID code	0xF4D
Cooling	Fanless
Status indicators	CPU function, Ethernet
Diagnostics
CPU function	Yes, using LED status indicator
Ethernet	Yes, using LED status indicator
Temperature	Yes, using software register
Support
Controller redundancy	No
Storage health data support	Yes
ACOPOS support	Yes
Visual Components support	Yes
Power consumption	2.5 W
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
EAC	Yes

Controller

Real-time clock	Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C
FPU	Yes
Processor
Type	ARM Cortex-A9
Clock frequency	166 MHz (compatible)
L1 cache
Data code	32 kB
Program code	32 kB
L2 cache	512 kB
Integrated I/O processor	Processes I/O data points in the background
Remanent variables	8 kB FRAM, retention >10 years
Shortest task class cycle time	4 ms
Typical instruction cycle time	0.0446 µs
Standard memory
RAM	128 MB DDR3 SDRAM
Application memory
Type	256 MB eMMC flash memory
Data retention	10 years
Writable data amount
Guaranteed	40 TB
Results for 5 years	21.9 GB/day
Guaranteed erase/write cycles	20,000
Error-correcting code (ECC)	Yes

Interfaces

Interface IF2
Signal	Ethernet
Variant	2x shielded RJ45 (switch)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	10/100 Mbit/s
Transfer
Physical layer	10BASE-T/100BASE-TX
Half-duplex	Yes
Full-duplex	Yes
Autonegotiation	Yes
Auto-MDI/MDIX	Yes
Interface IF4
Type	USB 1.1/2.0
Variant	Type A
Max. output current	0.2 A
Interface IF5
Type	USB 1.1/2.0
Variant	Type A
Max. output current	0.2 A
Interface IF6
Fieldbus	X2X Link master
On base module	X20BB52: Compact-S PLC base module with integrated RS232 interface X20BB53: Compact-S PLC base module with integrated RS485 interface X20BB57: Compact-S PLC base module with integrated RS232 and CAN bus interface

Electrical properties

Electrical isolation	Ethernet (IF2) isolated from other interfaces and PLC X2X (IF6) isolated from other interfaces and PLC: Yes, with X20PS9600 / No, with X20PS9602 USB (IF4, IF5) not isolated from each other and PLC

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating" in the X20PS960x data sheet.
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9600 or X20PS9602 separately. Order 1x Compact-S PLC base X20BB5x separately.
Pitch
X20BB5x	37.5^+0.2mm
