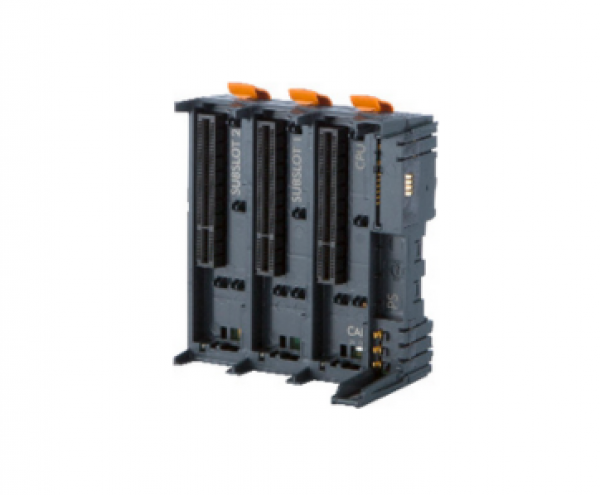

Đế gắn B&R X20BB77

Mã sản phẩm: X20BB77

Giá bán: Liên hệ

Mô tả sản phẩm:

Mô-đun bus là cơ sở cho tất cả các CPU X20CP048x Compact-S trong dòng X20. Nó được trang bị 2 khe cắm cho các mô-đun giao diện X20.

Các tấm bìa bên trái và bên phải được bao gồm trong giao hàng.

Bus module	X20 Compact-S PLC base - backplane for Compact-S PLC and Compact-S PLC power supply module
Interfaces	1x RS232 connection, 1x CAN bus connection

B&R ID code	0xEB05
Power consumption
Bus	1.17 W
Internal I/O	-
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
UL	cULus E115267 Industrial control equipment
DNV	Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
BV	EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
EAC	Yes

Nominal voltage	24 VDC
Permissible contact load	10 A

Electrical isolation	Bus, CAN bus and RS232 not isolated from each other

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	-
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
